Digital Temperature Controller
- Product Info
- Technical Specifications

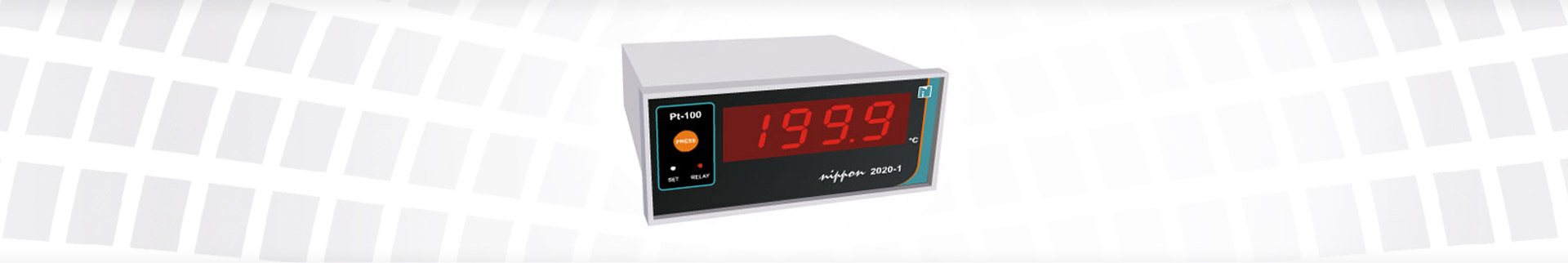

Anupam's Digital Temperature Controller comes with a display size is '1' inch. It is easy to read from a long distance. The instrument is housed in 72H X 144W Din size box.
Features
- Automatic cold junction compensation (Thermocouples)
- Broken sensor indication & sensor linearization
- Using DFG techniques are the standard features
- High accuracy
- Display, measure and control temperature of furnaces over wide range
| Element Type | Specification |
|---|---|
| Principle | Input suitably signal conditioned, amplified, linearised as required and displayed. |
| Inputs | J,K,R,S,T and other thermocouples, R.T.D.'s like Pt-50, Pt-100 (2,3 wire), 4-20mA, 0-1 VDC ......etc.... |
| Range, Accuracy Resolution | Refer Table - A |
| Cold Junction Compensation | Automatic |
| Sensor Open | Display indicates "1" |
| Display | 31/2 digit bright L.E.D. (.5") in nippon 1010 41/2 digit bright L.E.D. (.5") in nippon 1010A. |
| Ambient Temperature | 0-55 ºC |
| Humidity | 95% RH |
| Supply Voltage | 230 VAC ± 10%, 50Hz, also available 90-260 VAC on request. |
| Box Size | 48H X 96W X 180D in mm 1/8 DIN size (72W X 72H also available) |
Table "A"
| MODEL NO. | SENSOR | RANGE | CALIBRATION ACCURACY | RESOLUTION ºC / ºF |
|---|---|---|---|---|
| Anupam 2020A | Pt-100 (2,3 wire) | -100.0 to 600.0 ºC - 148.0 to 1112.0 ºF |
0.25% | 0.1 |
| Anupam 2020 | Pt-100 | -100.0 to 199.9 ºC - 148.0 to 199.9 ºF |
0.25% | 0.1 |
| Anupam 2020 | Pt-100 | -100.0 to 600.0 ºC - 148.0 to 1112.0 ºF |
0.25% | 1 |
| Anupam 2020 | Iron / Constantan (J) | -100.0 to 600.0 ºC - 148.0 to 1112.0 ºF |
0.1% | 1 |
| Anupam 2020 | Chrome / Alumel (K) | -80.0 to 1200.0 ºC - 112.0 to 1999.0 ºF |
0.7% | 1 |
| Anupam 2020 | Pt / Rh (R, S) | -900.0 to 1600.0 ºC - 1652.0 to 1999.0 ºF |
0.5% | 1 |
