Presettable Counters
- Product Info
- Technical Specifications

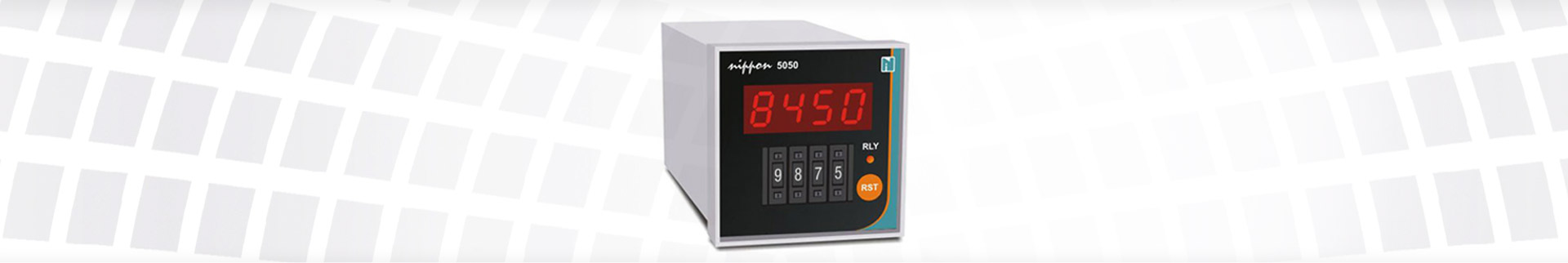

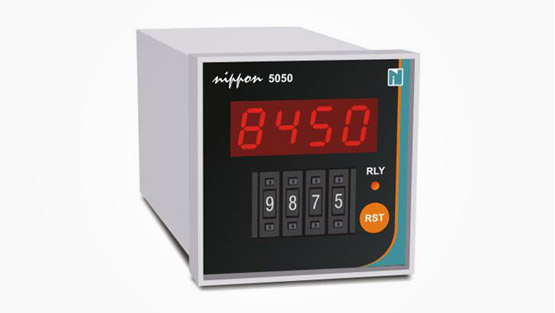

Anupam's 5050-B, 5050 & 5050-6 are unique digital Presettable Counters with and without memory having wide applications in textile Industries for meter counting, Pharmaceutical - chemical - Food Industries for event counting, packing machineries, machine tool engineering for stroke counting and many other areas where accurate counting is involved.
Working
Instrument accepts signals from Photo Sensors, Proximity Switches, Limit Switches, Contact closures, Encoders, Voltage Pulses etc. Instrument can work upto 2 KHZ of switching frequency. The Incoming signal is filtered, conditioned, wave shaped with help of filters and choppers. The signal is fed to Synchronous counter I.C. which drives seven segment display. At the same time signal is compared with set value. At the set point relay change over takes place. The Relay can be operated in Delayed On, Delayed Off, Auto Reset modes as per the application.
Features
- Cent Percent accuracy
- Modular design in DIN size box
- Accepting wide range of inputs
- Bright Display
- Memory in case of Power failure
| Element Type | Specification |
|---|---|
| Range | 0-99, 999, 9999, 99 99 99 Counts. |
| INPUTS | Limit Switches, Proximity Switches, Photo Sensors, Encloder,Voltage Pulses, Contact Closures....etc... |
| MAXIMUM FREQUENCY | Upto 2 KHZ. |
| COUNTING ACCURACY | Cent - Percent. |
| DISPLAY | 3, 4 or 6 digit bright Seven Segment display. |
| LIMIT SETTING | By Thumbwheel Switches. |
| LOGIC | Delayed On, Delayed Off, Auto reset, Auto reset with timer. |
| MODE | Count Up. (Count Down on request) |
| OUTPUT | Relay (O.E.N.) Changeover rated at 230 V/6A. |
| SUPPLY | 30 VAC ±10 %, 50 Hz. |
| Box | 96 (H) X 96 (W) X 180 (D), mm DIN size box with modular system. Also available in 72 (H) X 72 (W) X 110 (D) mm |
