Finned Strip Heaters
- Product Info
- Application

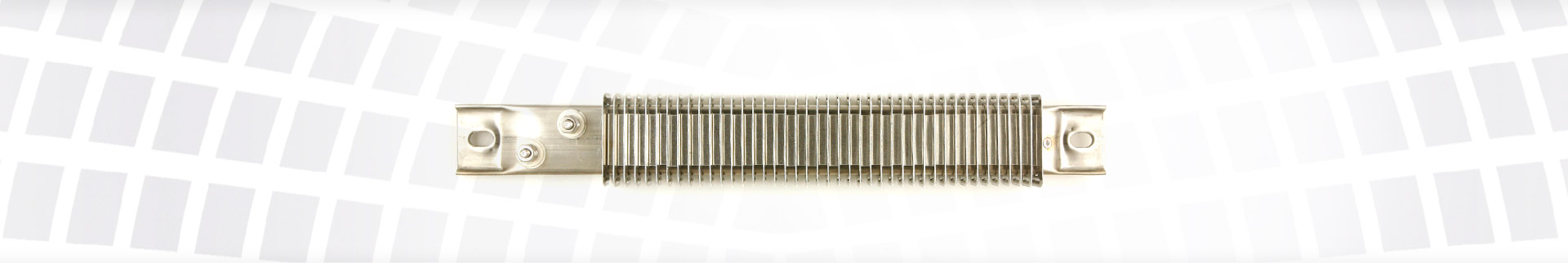

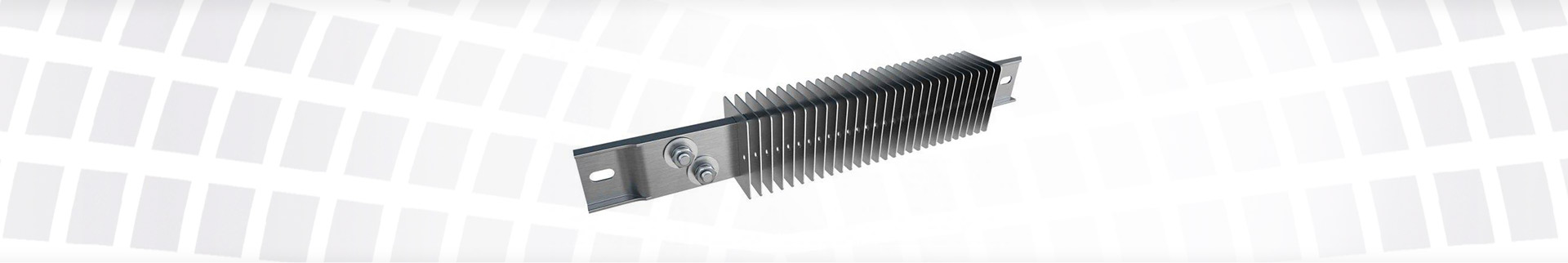

Anupam's Finned Strip Heaters are used for both forced (mounted in a duct) and natural convection air heating (mounted at the bottom of cabinet type ovens).
Fins increase the heat transfer surface area to allow higher wattages than standard Strip Heaters. These are intended to be operated with a substantial airflow and are typically used in heating tunnels, dryers or any application that requires a hot air source.
Finned strip heaters, often considered component heaters, are an electric heating element that maximizes heat intensity and transfer effectively in an area. Steel fin strip heaters are an excellent industrial heating product that can be easily controlled by using a heating control panel, mechanical thermostat or cost effective bi-metal thermostats that can be installed on the surface of the heater. Mounting holes are useful to mount the heaters securely on the wall housing with terminal extending from the sheath for easy electrical connections. Many users also request lead wires that extend from one end that make the installation more flexible as the temperature controller is easily adaptable to this configuration.
A finned strip heater is filled with highly-compacted MgO insulation which conducts heat from the nickel-chrome element wire to the outer sheath. The fins are spaced in a way that maximizes surface contact so that heat is displaced, and then transferred into the air faster.
Temperatures can reach as high as 500 degrees F and use of the high quality magnesium oxide that is also used in tubular heating elements that allow for effective heat transfer. Finned strip heaters are a fairly inexpensive way of heating small areas and are an excellent solution to meet any budget.
Finned strip heaters are composed of a heating element, a protective sleeve or sheath, and mounting hardware along with steel finned that are used to extend surface area. If strip heaters are used as a radiant heater, or a duct heater, they have can have fins to maximize surface area and heat transfer to the air. Strip heaters can be clamped or bolted onto objects or solid surface contact heating over large areas and are primarily used in indoor applications.
Features
- High heat transfer rates and fast heat up
- Long life
- Large selection of lengths, sizes and terminations
- Low expansion characteristics
- Distributed wattage available
- Process air heating
- Ovens
- Drying cabinets
- Baking ovens
- Vacuum dehydrating ovens
- Moisture protection for motors
- Duct Heaters Winterizing
- Hoppers
- Conveyors
- Ducts
- Car heating systems
- Thawing
- Dehumidifiers
- Space heating
- Packaging and sealing equipment
- Food warming equipment
- Vulcanizing presses
- Drying equipment
- Laboratory equipment
- Air conditioning
